Maintenance Platform — Structural Verification
Self-directed project · October 2026 · Reviewed by S. Azoubaidy, P.Eng.
R0 issued for P.Eng. review · R1 in progress

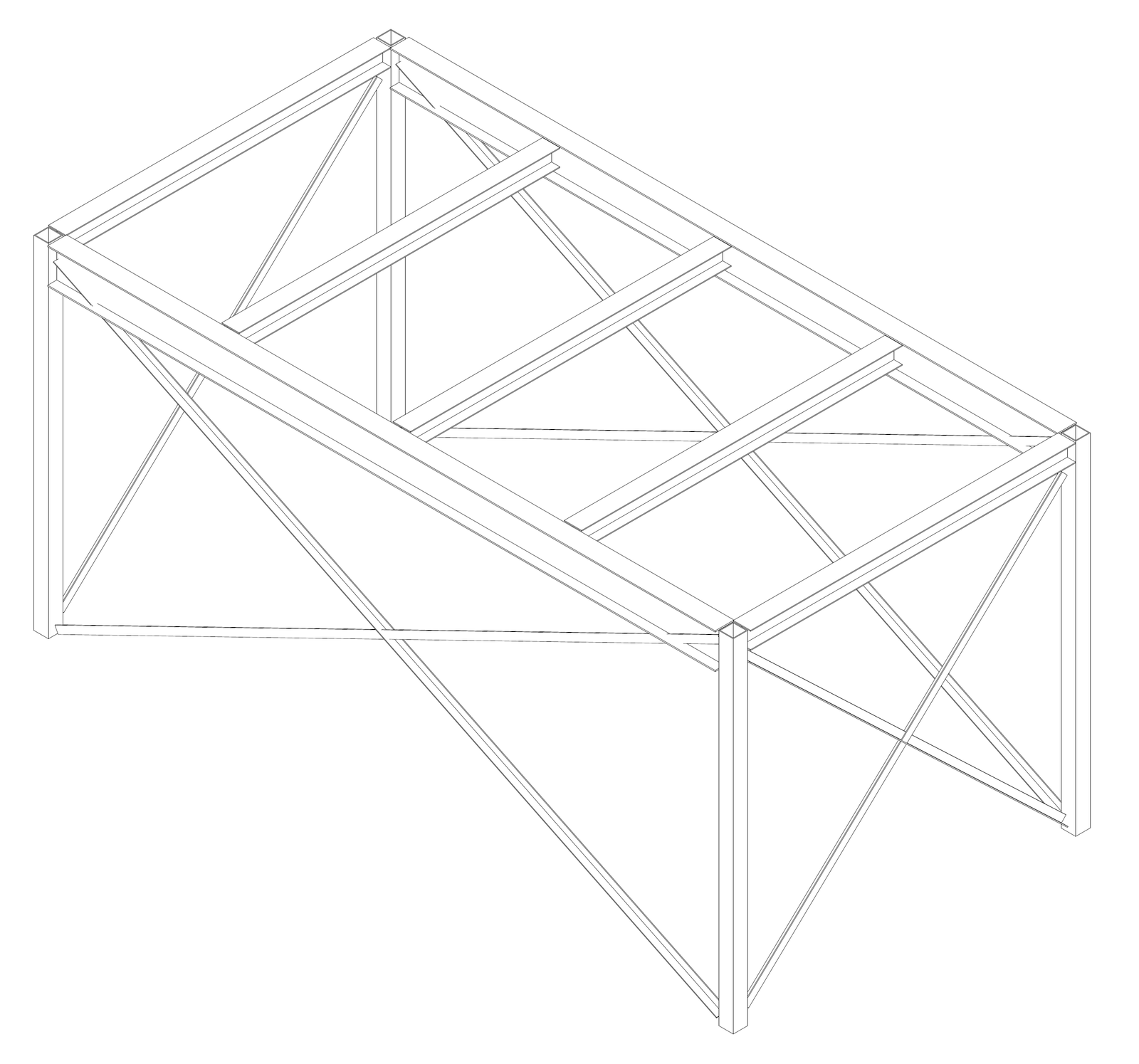

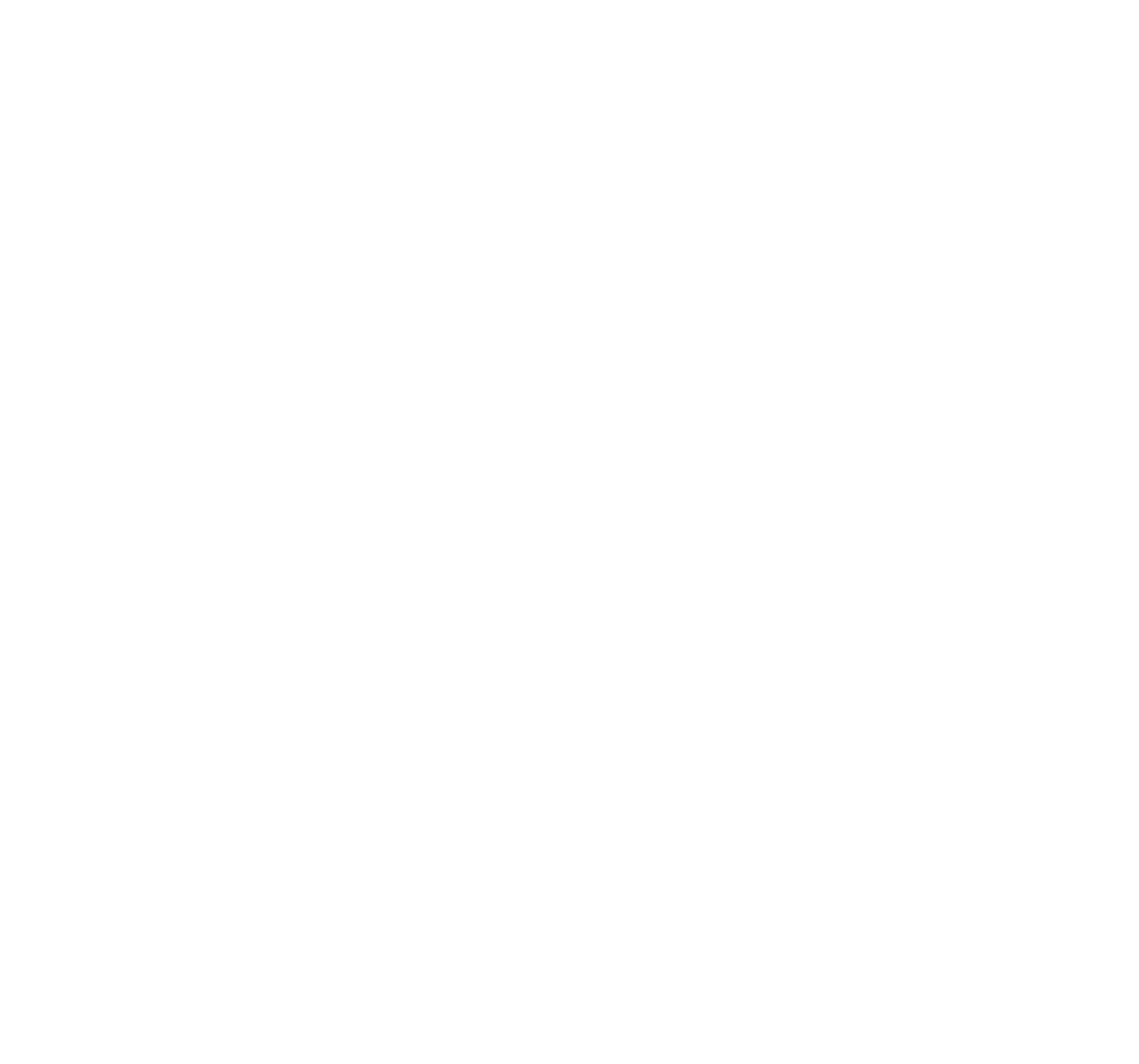

Revit 3D model

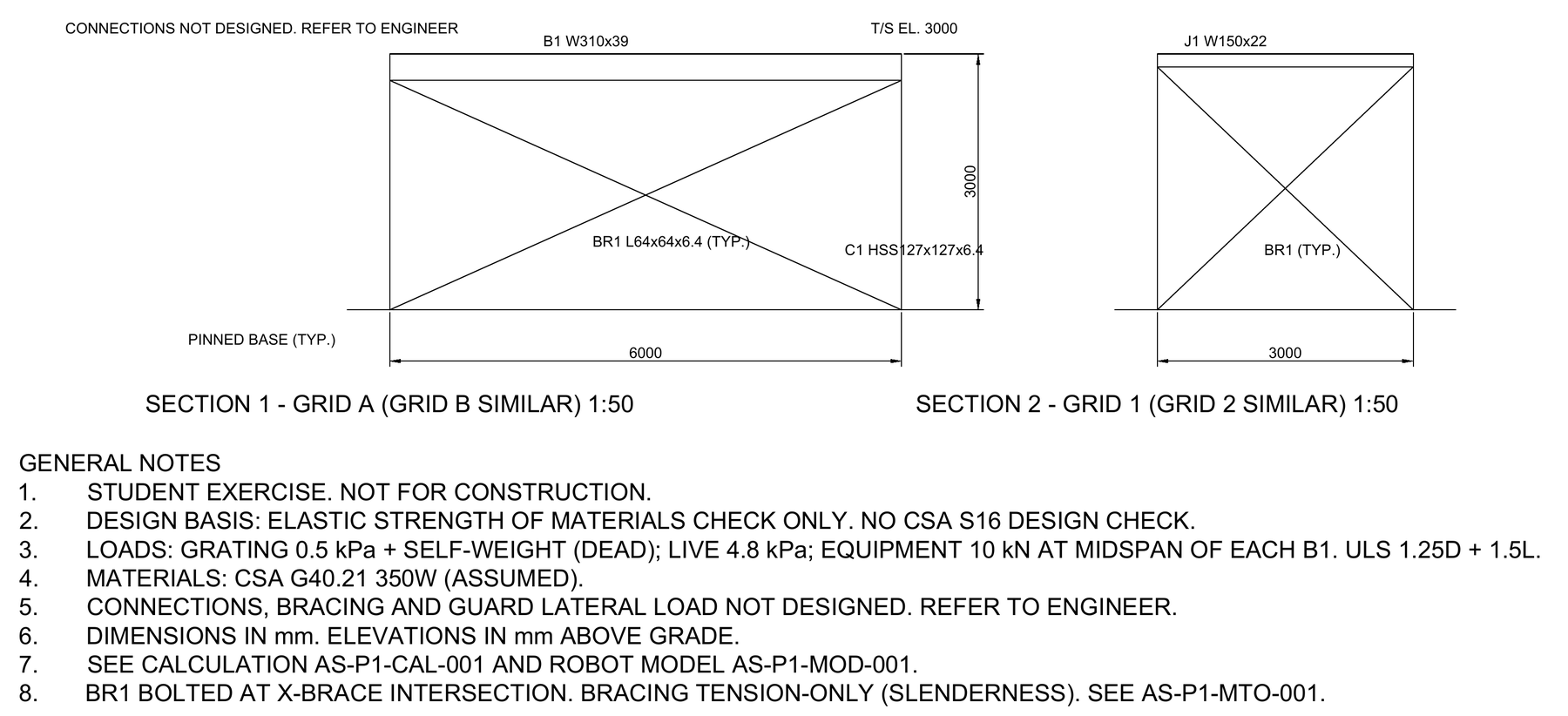

1 of 6 drawings
3Independent verification methods
≤1.7%Max difference between methods
6.0 × 3.0 mSteel platform
1,298 kgSteel take-off
A 6.0 m × 3.0 m steel maintenance platform (W310 beams, W150 joists, HSS posts, L-angle X-bracing), checked for gravity loads by three independent methods: hand calculation in Mathcad, a parametric Excel workbook and a 3D Robot model. Drawn in AutoCAD and modelled in Revit, with a material take-off and a review register. Issued for review to S. Azoubaidy, P.Eng.; revision R1 (tension-only bracing and guard lateral loads) in progress. Student exercise: elastic analysis only, not a CSA S16 design.
Key highlights
- Beam and joist results agreed within 0.1% across Mathcad, Excel and Robot.
- Traced a 1.7% post-load difference to bracing self-weight, and found the X-bracing carrying about 4.9 kN of gravity load.
- Found the long braces over the slenderness limit (L/r ≈ 537 vs 300), so specified a bolted crossing and tension-only bracing.

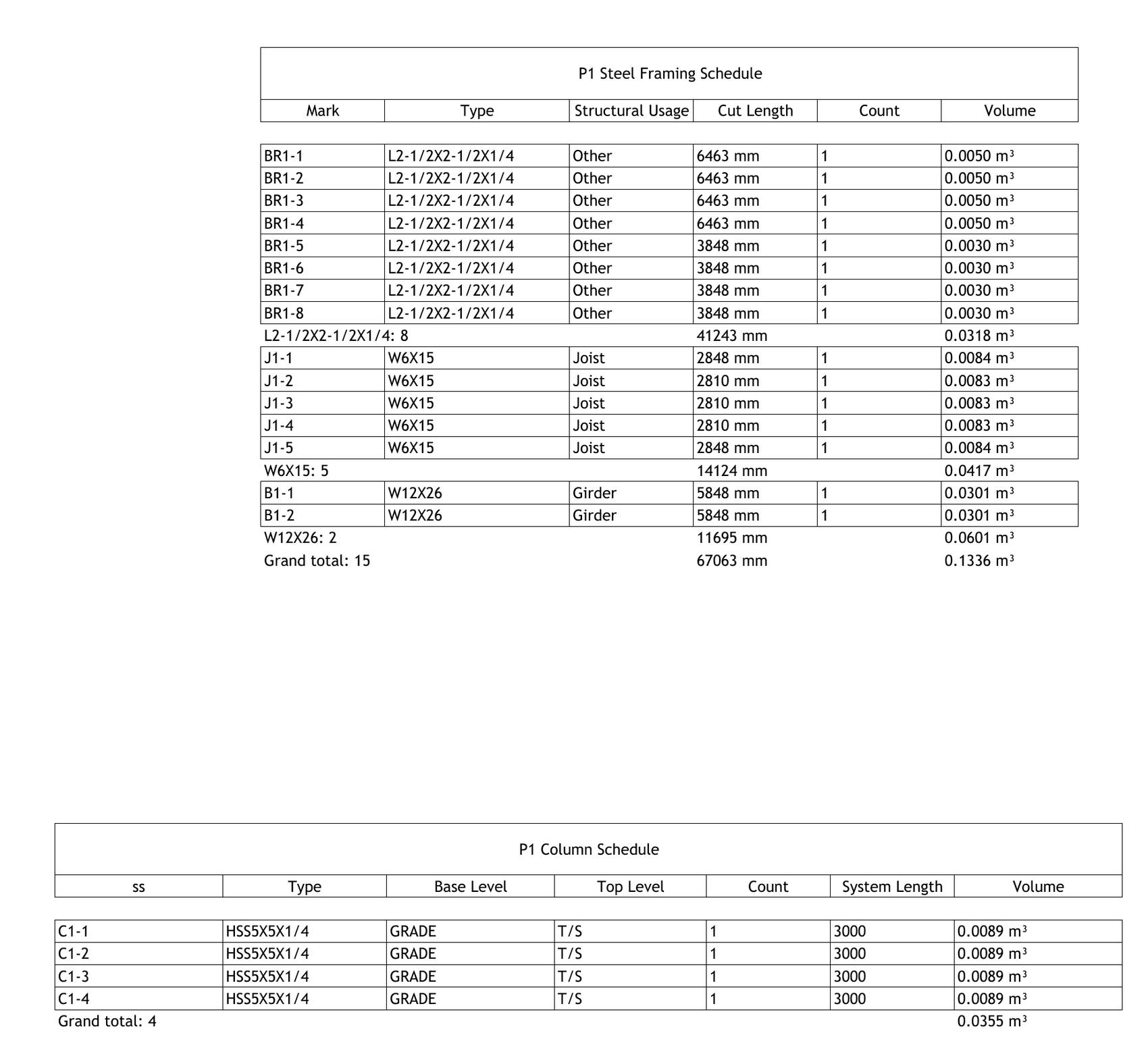

- Caught a modelling error from the Revit schedule (braces modelled as W-sections) and corrected it. The take-off matched the Revit volumes within 2.3%.

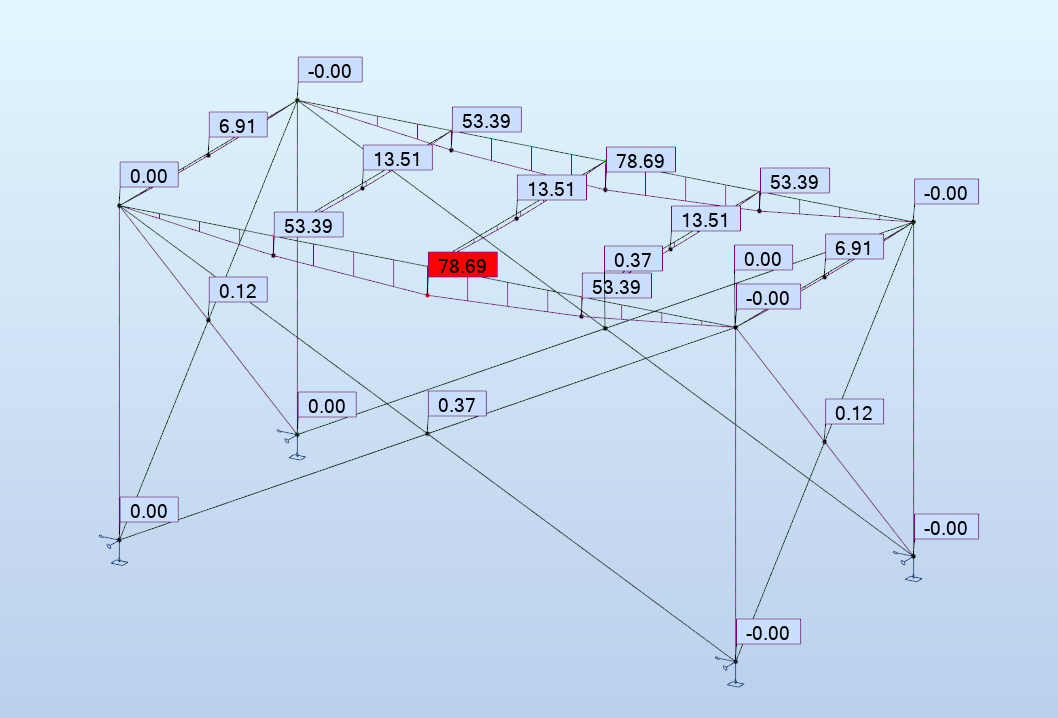

Three-way comparison (AS-P1-RPT-001, R0)
| Quantity | Unit | Mathcad | Excel | Robot | Robot vs hand | Limit |
|---|---|---|---|---|---|---|
| J1 factored moment, Mf | kN·m | 13.51 | 13.52 | 13.51 | 0.0% | – |
| J1 factored shear, Vf | kN | 18.02 | 18.02 | 18.02 | 0.0% | – |

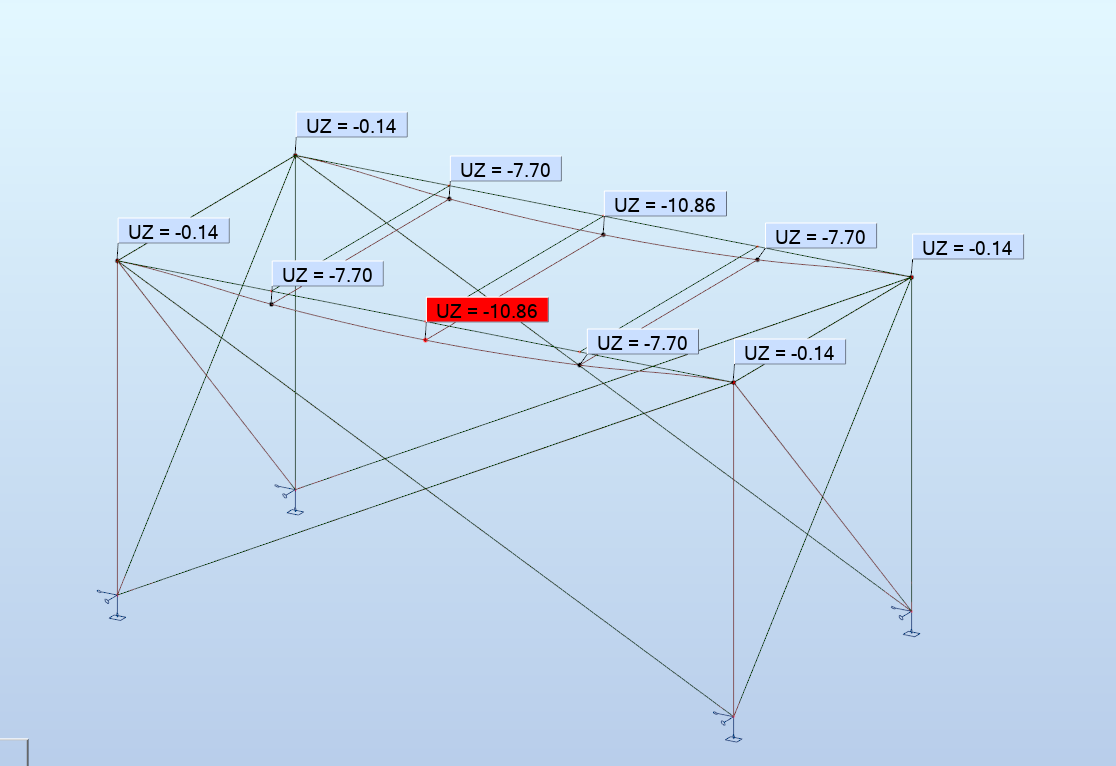

| J1 service deflection | mm | 3.56 | 3.56 | 3.56 | 0.0% | 8.33 |
| B1 factored moment, Mf | kN·m | 78.70 | 78.70 | 78.69 | 0.0% | – |
| B1 factored shear, Vf | kN | 35.96 | 35.96 | 35.95 | 0.0% | – |
| B1 service deflection | mm | 10.72 | 10.72 | 10.72 | 0.0% | 16.67 |
| C1 factored axial load | kN | 46.03 | 46.03 | 46.83 | +1.7% | – |
| C1 Euler buckling load, Pcr | kN | 1,546 | 1,546 | Not run | – | – |
The C1 difference comes from about 2.6 kN of bracing self-weight that only the Robot model includes. Comparison criterion: 2%.
Design basis
- Members

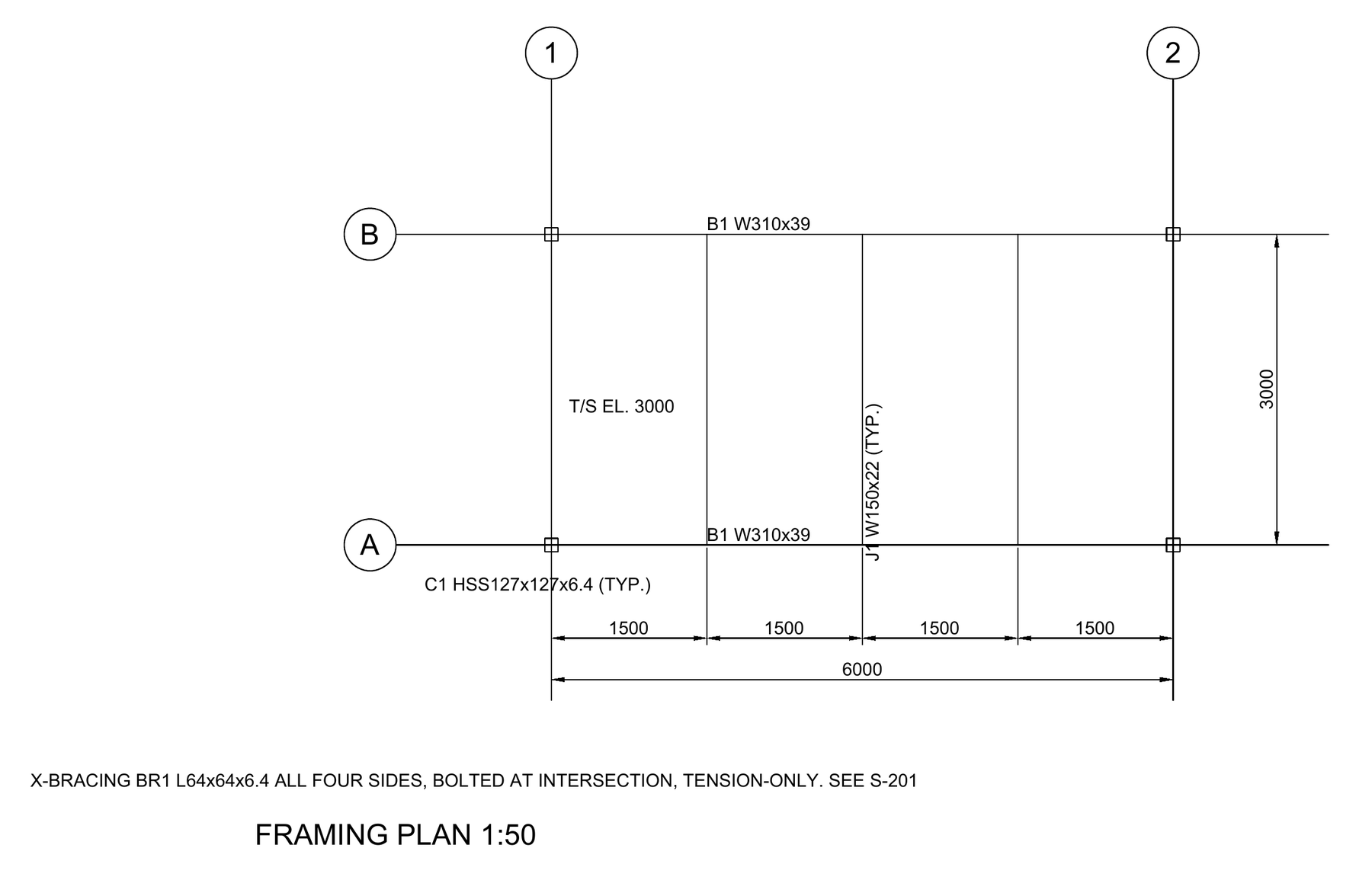

- B1 W310×39 (6.0 m, simply supported) · J1 W150×22 at 1.5 m (3.0 m) · C1 HSS127×127×6.4 (3.0 m, pinned, K = 1.0) · BR1 L64×64×6.4 X-bracing, all four sides
- Loads
- Dead 0.5 kPa grating + self-weight · Live 4.8 kPa (assumed) · Equipment 10 kN at midspan of each B1 (assumed)
- Combinations
- ULS 1.25D + 1.5L · SLS D + L · Deflection L/360 (assumed)
- Material
- CSA G40.21 350W (assumed) · E = 200,000 MPa
- Scope
- Elastic analysis only. CSA S16 resistances, lateral-torsional buckling, connections and guard lateral load not yet checked.
